24V 2.6Ah Long Cycle Life>10000cycles Lithium Titanate LTO Battery Integrated MPPT Function

HEFEI ECOLITE ENERGY CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

24V 2.6Ah Long Cycle Life>10000cycles Lithium Titanate LTO Battery Integrated MPPT Function

Brand Name : Ecolite/ECOLTO/OEM/ODM

Model Number : ECOLTO2402

Certification : UN38.3 MSDS CE RoHS

Place of Origin : China

MOQ : 100Units

Price : Inquiry

Payment Terms : T/T, L/C

Supply Ability : 2000Units per month

Delivery Time : 1-2 months

Packaging Details : Carton Pallet Container

Chemical Formula : Lithium Titanate Oxide

Nominal Voltage : 24V

Rated Capacity : 2.6Ah

Energy : 62.4Wh

Resistance : ≤70mΩ

Cycle Life(25℃,1C/1C,100%DOD) : >10000cycles ,Remaining capacity>80%

Dimension(W×D×H) : 205x71x55mm

Weight : 1.2kg

Terminal Type : +,TE 2293255-1;-,TE5-160526-9,MC4

Contact Now

Ecolite 24V 2.6Ah Lithium Titanate LTO Battery Pack For Solar Tracking Systems Integrate BMS

ADVANTAGES

  1. Lithium Titanate Oxide (LTO) Technology
    • Industry-leading safety with non-flammable electrolyte
    • Exceptional cycle life exceeding 10,000 cycles
    • Operational temperature range: -40°C to +60°C
    • UL/CE-certified for global safety standards
  2. Integrated Smart Battery Management System (BMS)
    • Real-time voltage/current/temperature monitoring
    • Overcharge/discharge/short circuit protection
    • Active cell balancing for optimized performance
    • Remote diagnostics capability via IoT connectivity
  3. Solar Tracking System Optimization
    • Perfectly matched for single-axis/two-axis tracker applications
    • High-power delivery for motor actuation requirements
    • Grid-independent operation for remote locations
  4. Long-Term Performance Assurance
    • 5-year comprehensive warranty (industry-leading coverage)
    • 80% capacity retention after 10 years
    • Global service network with 24/7 technical support
  5. Sustainable Energy Storage
    • Zero maintenance design
    • Recyclable materials construction
    • Carbon-neutral manufacturing process

PERFORMANCE

Cycle Life Excellence: Engineered with cutting-edge lithium-ion technology, this battery delivers an industry-leading cycle life exceeding 10,000 cycles while maintaining ≥80% remaining capacity under rigorous 25℃ testing conditions (1C/1C charge-discharge, 100% DOD).

Premium Performance Features:

  • High Energy Density: Maximizes power output in compact designs, ideal for space-constrained solar tracking systems.
  • Rapid Discharge Capability: Supports high-current applications with stable voltage output.
  • Wide Thermal Range: Operates reliably across extreme temperatures, ensuring consistent performance in challenging environments.

Advanced Design:

  • Ultra-Lightweight: Reduces system load and installation complexity without compromising durability.
  • Maintenance-Free Operation: Eliminates need for periodic servicing, minimizing lifecycle costs.

Charging Efficiency: Equipped with fast-charging technology, enabling rapid energy replenishment for continuous solar tracking operations.

Sustainability Focus: Constructed with eco-friendly materials and designed for recyclability, aligning with global green energy initiatives.

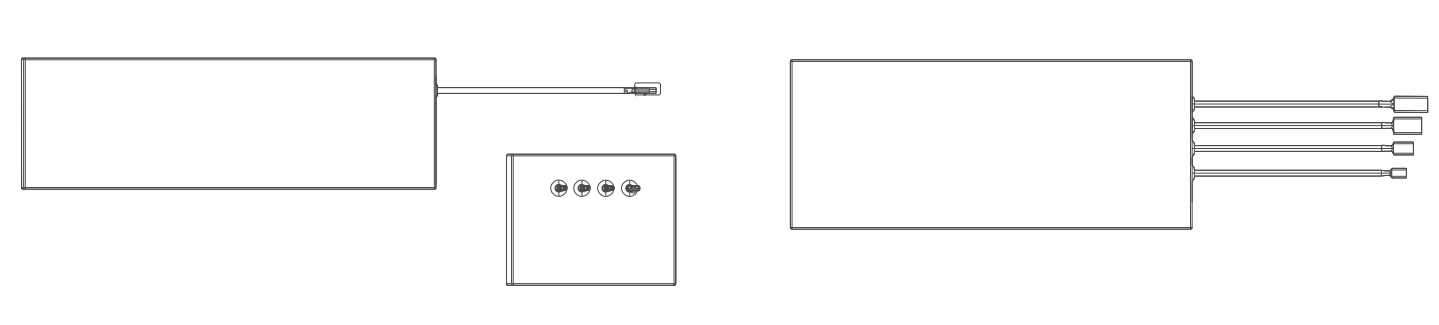

Three views of product

24V 2.6Ah Long Cycle Life>10000cycles Lithium Titanate LTO Battery Integrated MPPT Function


Product specificatio6

Lithium Titanate(LTO) ECOLTO2402(24V2.6Ah)

Electrical Parameters Mechanical Parameters
Nominal Voltage 24V Dimension(L×W×H) 205x71x55mm
Nominal Capacity 2.6Ah 8.07x2.80x2.17"
Energy 62.4Wh Weight 1.2kg
Resistance ≤ 70mΩ Terminal Type +,TE 2293255-1;-,TE5-160526-9,MC4
Efficiency 0.98 Battery Housing PVC
Cycle Life(25℃,1C/1C,100%DOD) >10000cycles,Remaining capacity>80% Housing Protection IP20
Self Discharge <5% per Month Cell Type-Chemistry LTO Cell
Cell in Series/Parallel 10S/2P Communication(Optional) UART(Voltage,Current,Temperature)
Discharge Parameters Charge Parameters
Continuous Discharge Current 8A MPPT Range DC16V~DC36V
Pulse Discharge Current 25A (<1S) Max.Input Current 6A
Recommended Volt. Disconnect 15V BMS Charge Cut-off Voltage 28.5V
BMS Discharge Cut-off Voltage 17V
Reconnect Voltage 18V
Short Circuit Protection 200-500us
Temperature Parameters
Discharge Temperature -40 to 65 ℃
Charge Temperature -40 to 65 ℃
Storage Temperature 0 to 45℃
BMS High Temperature Cut-off

65 ℃
