24V 150Ah LiFePO4 Lthium Battery RV Marine Truck Starting Parking Rechargeable Energy Storage Lthium-Ion Battery
APPLICATION
Lithium Ion Battery for Heavy Truck is suitable for electric trucks, dumper truck, construction equipment and other engineering vehicles. Our Truck lithium ion battery for heavy trucks can get the work done perfectly.
BATTERY FEATURES
High Energy Density up to 100% usable
Fast charging
Easy installation, Safe & Reliable
Low self-discharge less than 3% per
Integrated With BMS
Higher safety performance. BMS provide over current,over voltage, over temperature, short circuit protection.
No fire hazard.
LiFePO4 Prismatic Cells
About 1/3 lighter in weight compared with lead acid batteries. More than 2000 cycle life and start your car more times repeatable
Peak 1000CCA Starting Power
Quick start-off. Capable of high current (we offer 300CCA-1000CCA ) to meet different vehicles' need.
Increase Fuel Efficient by 2%
After testing, within 5 minutes after starting, the battery charging current is close to 0A, and the idling fuel consumption of the car is reduced by more than 10%.
Our high-power lithium iron phosphate batteries can withstand more than 2000 charge/discharge cycles. LiFePO4 batteries have the longest shelf life and can be stored for up to 2 years in any charged state without worrying about degradation. This makes them very suitable for seasonal equipment because they do not require long maintenance,

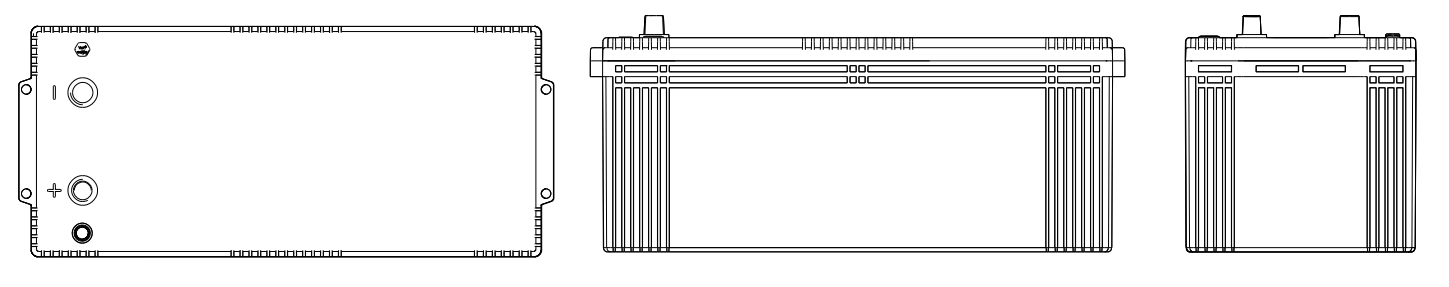

Three Views Of Product
Specification
| Electrical Parameters |
| Battery Voltage | 25.6V |
| Rated Capacity | 150Ah |
| Energy | 3840Wh |
| Resistance | ≤12mΩ |
| Efficiency | ≥0.98 |
| Cycle Life | ＞2000cycles,80% of initial capacity |
| Self Discharge | ＜5% per Month |
| Max.Modules in Series/Parallel | 8S/4P |
| Mechanical Parameters |
| Dimension(L×W×H) | 520*269*220mm |
| 20.47*10.59*8.66'' |
| Weight | 29kg |
| Terminal Type | Post |
| Battery Housing | ABS |
| Housing protection | IP65 |
| Cell Type-Chemistry | LiFePO4 Cell |
| Communication | CAN |
| 24V Parking air conditioning starter battery |
| Model | LFP24V150Ah |
| Nominal Voltage | 25.6V |
| Battery Capacity | 150Ah 2840Wh |
| Maximum Discharge Current | 150A |
| Maximum Instantaneous Current | 1500A |
| Maximum Charging Current | 150A |
| Maximum Charging Voltage | 29.2V |
| Working Temperature Range | -20℃~65℃ |
| Protection Class | IP65 |
| Weight | 29kg |
| Dimensions | 520×269×220mm |
Q1: Are you a manufacturer?
A1: Yes, sir, we have our own factory, the price is factory direct.
Q2. Can I have a sample order?
A2: Yes,welcome sample order to test and check quality.
Q3:Can you support OEM and ODM service?
A3:Yes,OEM ODM service is available.
Q4: What is your payment term?
A4: T/T,L/C
Q5: Which certificates do you have
A5: We have un38.3,MSDS...etc.
Q6: What is the mode of transport?
A6: usually by sea
